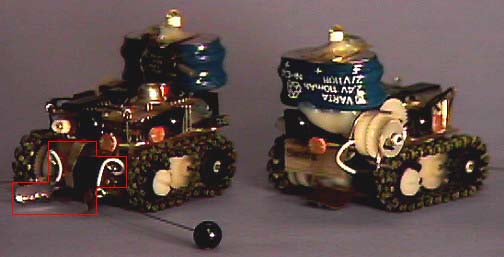

Click on a part in the picture for more information about it, or click here for a complete parts list.


Each robot has a pair of mandibles on the front. These work like grippers and allow the Ants to pick up pea-sized objects in their environment. There is a motor in the back that turns a pully that pulls a string that goes around to the front of the robot that splits into two and pulls each of the jaws in and up. (Whew) It is this complex in order to get the mandibles to perform two actions, grab and then lift, while only using a single motor. However, they don't work very well, and are currently being redesigned.

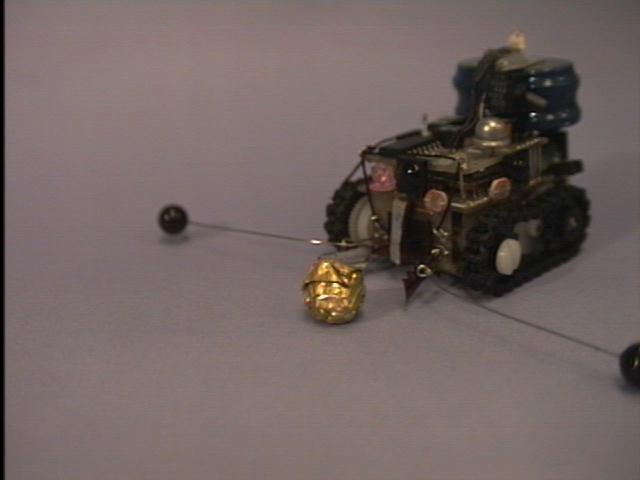

This sequence of pictures shows one of the Ants picking up some food. Want a better view? Here are some MPEGs of the same thing.

  • An Ant picking up food. (287K MPEG)
  • Cleo (a prototype Ant) following light and picking up food. (329K MPEG)

    Food Sensors

    There are five food sensors, two built into the bump sensors, two mounted on the inside surface of both mandible jaws, and one in between the jaws. In the picture, you can see the two white wires that connect the jaw food sensors to the computer. The food sensors are really just voltage sensors. All the food is crumpled pieces of brass foil, resting on the conductive surface of the ant farm. The robots are also in contact with this surface, and can measure voltages using it as a ground refrence. So, anything conductive will be shorted to the surface, which is shorted to the robots ground reference, and will "taste" like zero volts. This lets the robots find their food.

    In order to really be food, an object has to be more than just conductive:

  • First, the robot has to be able to get it to touch the middle food sensor before it tries to pick it up. This eliminates big objects that won't fit inside the mandibles.
  • Then, the robot has to be able to lift it high enough to break its connection with the ground plane. This eliminates heavy objects.
  • Then the robot checks to make sure then the mandibles are all the way up using the mandible position sensors. This checks for a good carrying position.
  • Then the robot passes a small current from one jaw to the other to make sure there is a good grip on the food. It continues to do this 50 times a second to make sure it doesn't fumble the food.
